Q41F46-10(16)C ball valve details Order Products

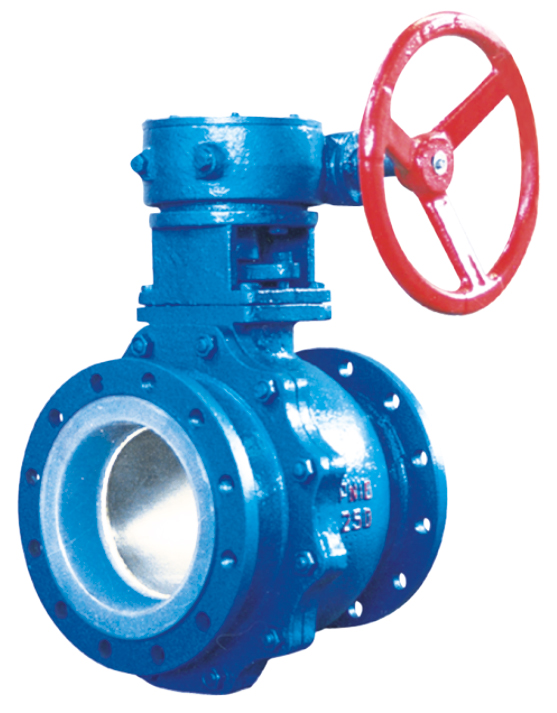

Q41F46-10(16)C ball valve
DN L D D1 D2 f b Z-φd
DN(mm) NPS(inch) PN1.0MPa
15 1/2 130 95 65 45 2 14 4-φ14
20 3/4 140 105 75 55 2 16 4-φ14
25 1 150 115 85 65 2 16 4-φ14
32 5/4 165 135 100 78 2 18 4-φ18
40 3/2 180 145 110 85 3 18 4-φ18
50 2 200 160 125 100 3 20 4-φ18
65 5/2 220 180 145 120 3 20 4-φ18
80 3 250 195 160 135 3 22 4-φ18
100 4 280 215 180 155 3 22 8-φ18
125 5 320 245 210 185 3 24 8-φ18
150 6 360 280 240 210 3 24 8-φ23
200 8 457 335 295 265 3 26 8-φ23
250 10 533 390 350 320 3 28 12-φ23
PN1.6MPa
15 1/2 130 95 65 45 2 14 4-φ14
20 3/4 130 105 75 55 2 16 4-φ14
25 1 140 115 85 65 2 16 4-φ14
32 5/4 165 135 100 78 2 18 4-φ18
40 3/2 165 145 110 85 3 18 4-φ18
50 2 203 160 125 100 3 20 4-φ18
65 5/2 222 180 145 120 3 20 4-φ18
80 3 241 195 160 135 3 22 8-φ18
100 4 305 215 180 155 3 24 8-φ18
125 5 356 245 210 185 3 26 8-φ18
150 6 394 280 240 210 3 28 8-φ23
200 8 457 335 295 265 3 30 12-φ23
